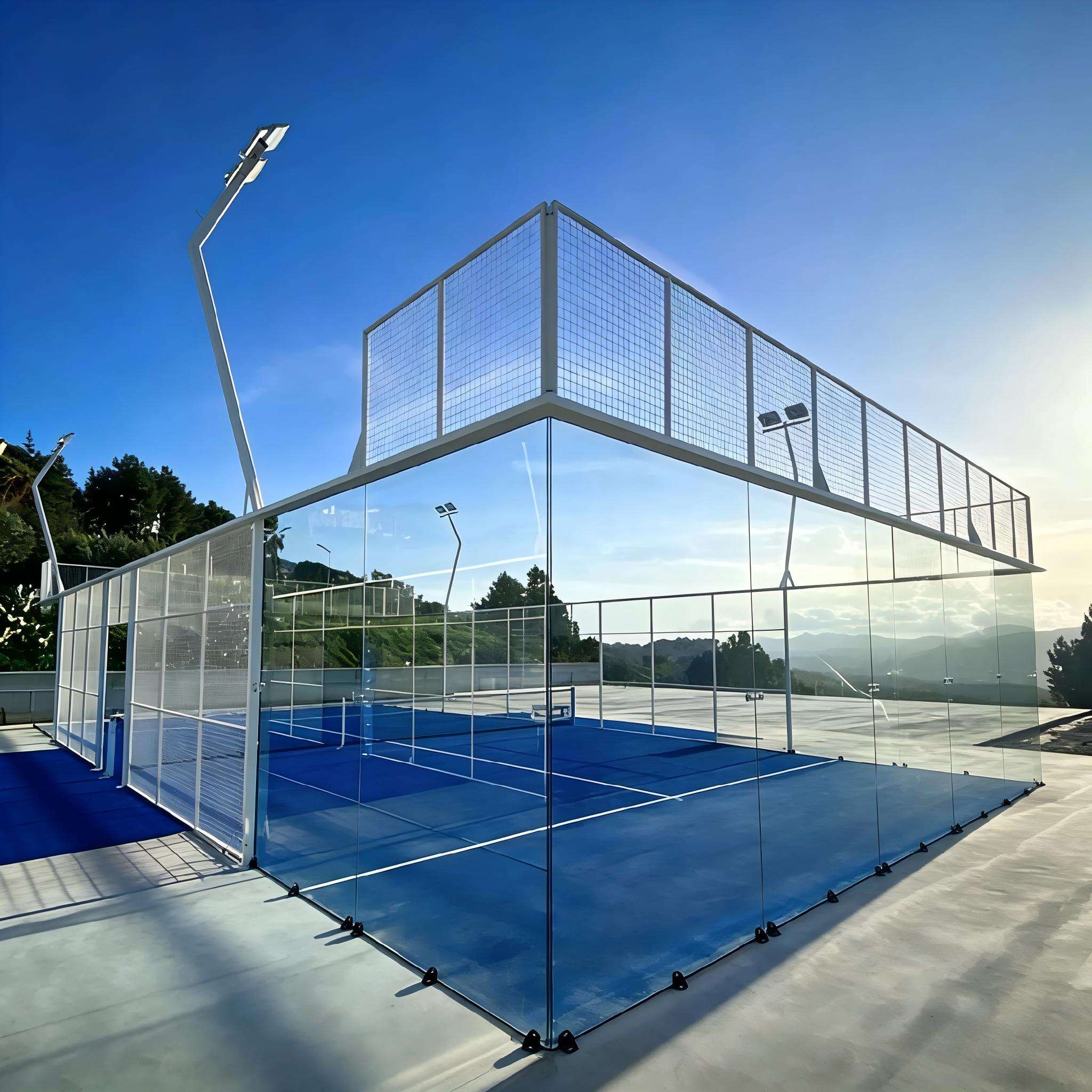

Full Panoramic Padel Court

The Full Panoramic Padel Court is our flagship product, Designed for sophisticated and professional players. offers superior visibility and performance. Constructed with pre-galvanized steel for durability, it features laser-cut anchor plates and a hidden robotized welding system for structural integrity.
MOQ: 1 Set

  • Overview
  • Parameter
  • Solutions
  • FAQ
  • Recommended Products
The full panoramic court is our flagship product. Featuring an all-glass enclosure design, it offers transparency and an unobstructed, open view. This design preserves the openness of the sports space while effectively preventing balls from flying out with the glass fencing, ensuring safety outside the court. The frame is constructed from sturdy, high-quality steel, treated with hot-dip galvanization before color coating. Paired with professional sports flooring, it balances elasticity and wear resistance to meet the demands of padel tennis. The top and surrounding areas are equipped with rationally designed lighting to accommodate sports activities at different times—utilizing natural light during the day and artificial lighting at night—creating a comfortable sports environment.

Want to immerse yourself in the ultimate sports experience? Don’t miss out on this full panoramic padel court! With its all-glass enclosure and boundless views, playing here feels like blending with nature—enjoy both the thrill of the game and a sense of expansive openness. The robust frame combined with professional flooring ensures durability and sports adaptability, while the scientifically planned lighting allows for energetic play day or night. Whether it's for a club looking to create a distinctive venue, or for upscale communities and hotels seeking to enhance their sports facilities, this court is sure to be a standout attraction. Elevate your sports space and embrace a new way to play padel—step into a world of transparency and professionalism today!

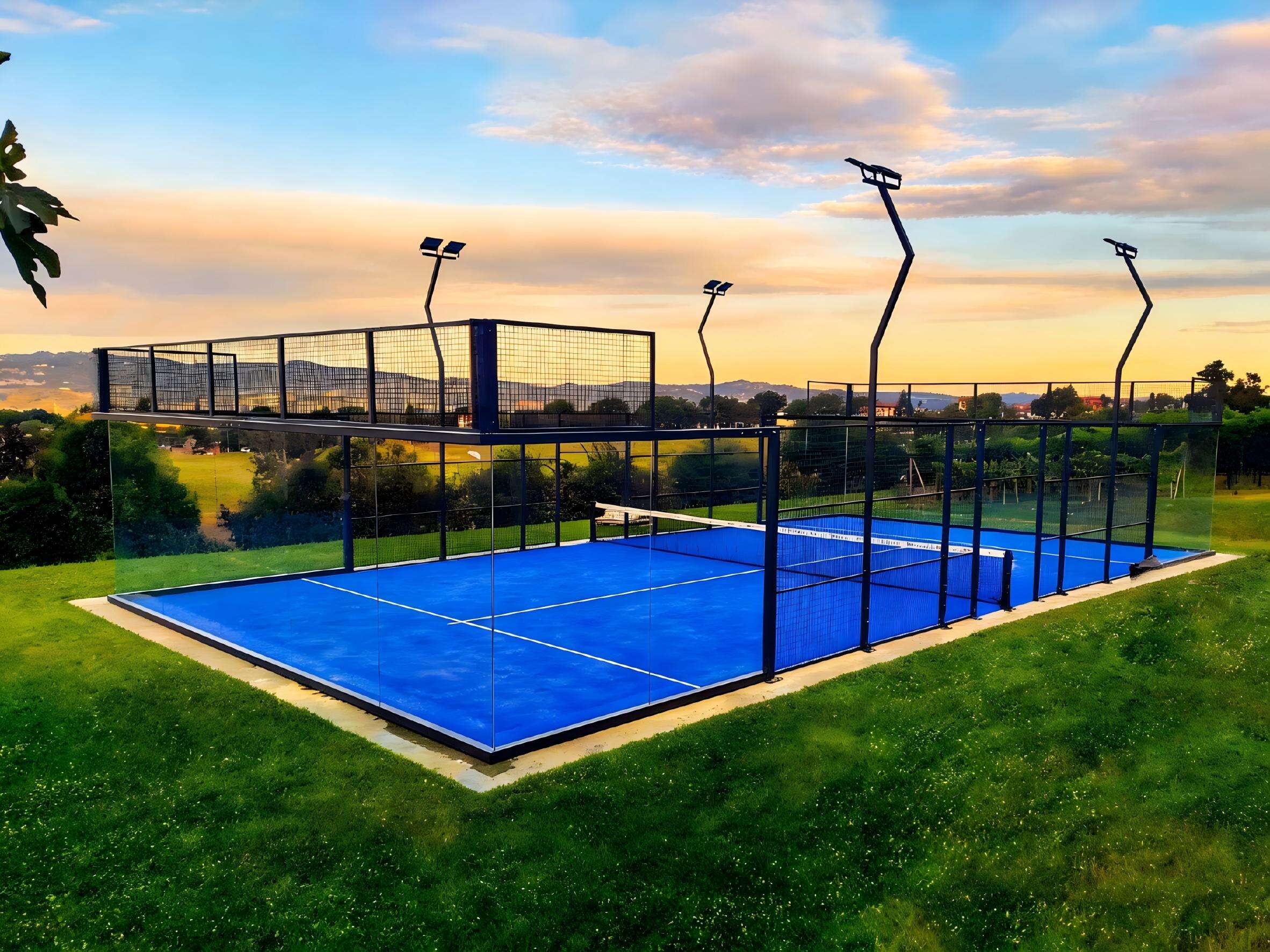

2Full Panoramic Padel Court.jpg
Parameter

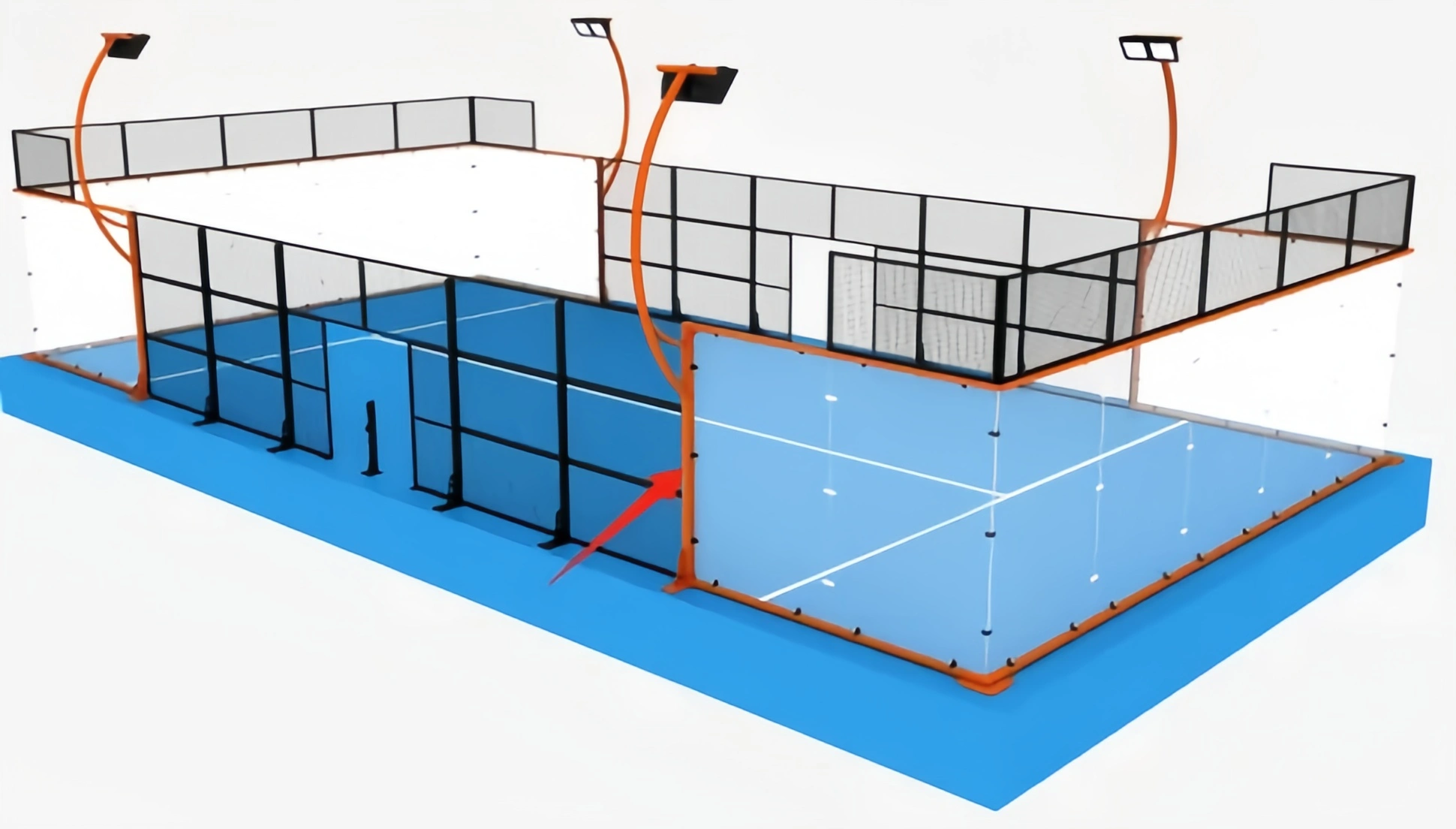

full panoramic padel court-0


Structure




The Full Panoramic Court has dimensions of 20×10 meters and a galvanized steel structure, painted with epoxy-polyester resin in an oven, strictly following the technical specifications.


The Column




Material: Hot-dip galvanized Q235steel +Epoxy zinc-rich primer + electrostatic spraying Steel pipe

Size: 100*100mm*3000mm

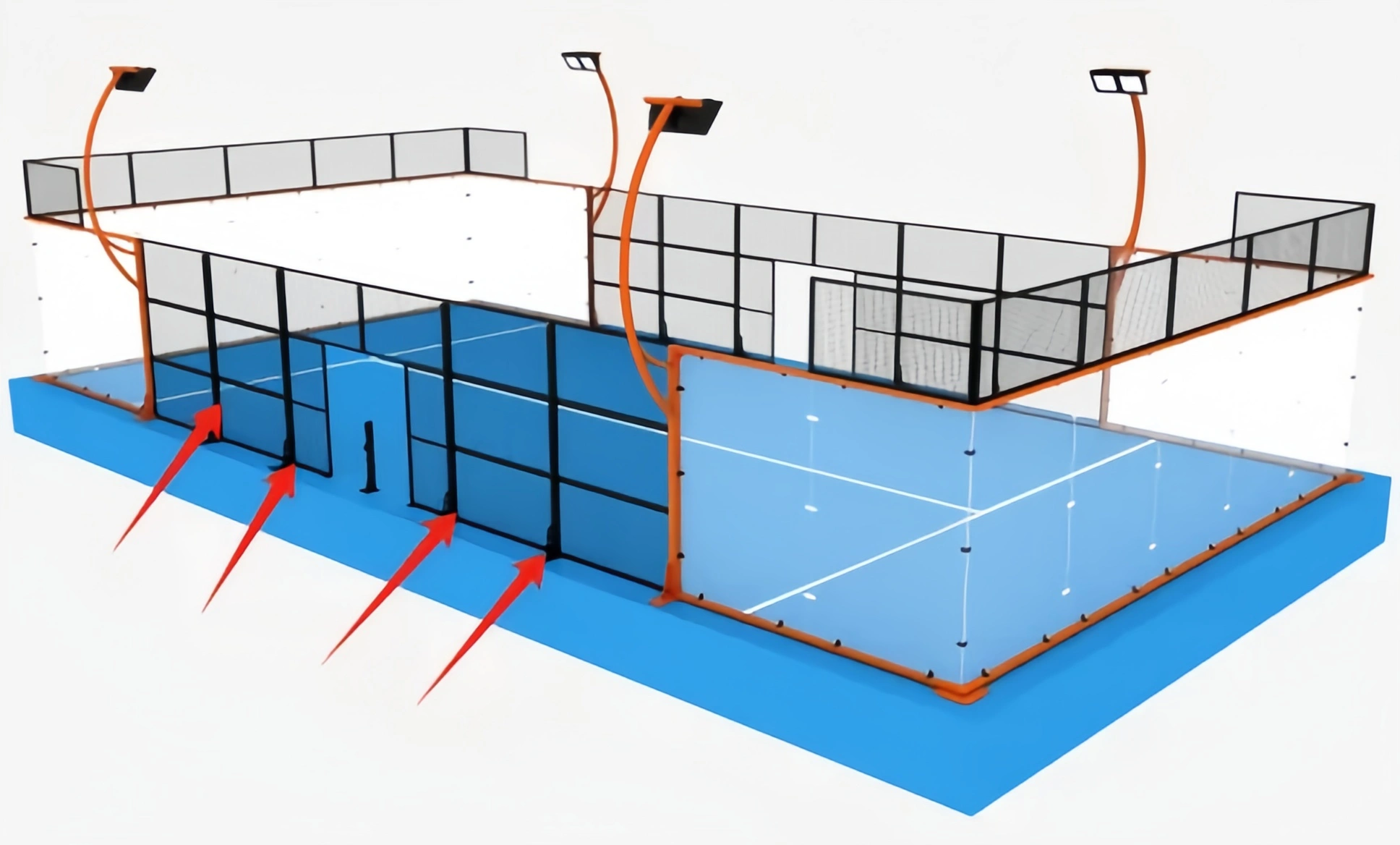

full panoramic padel court-1

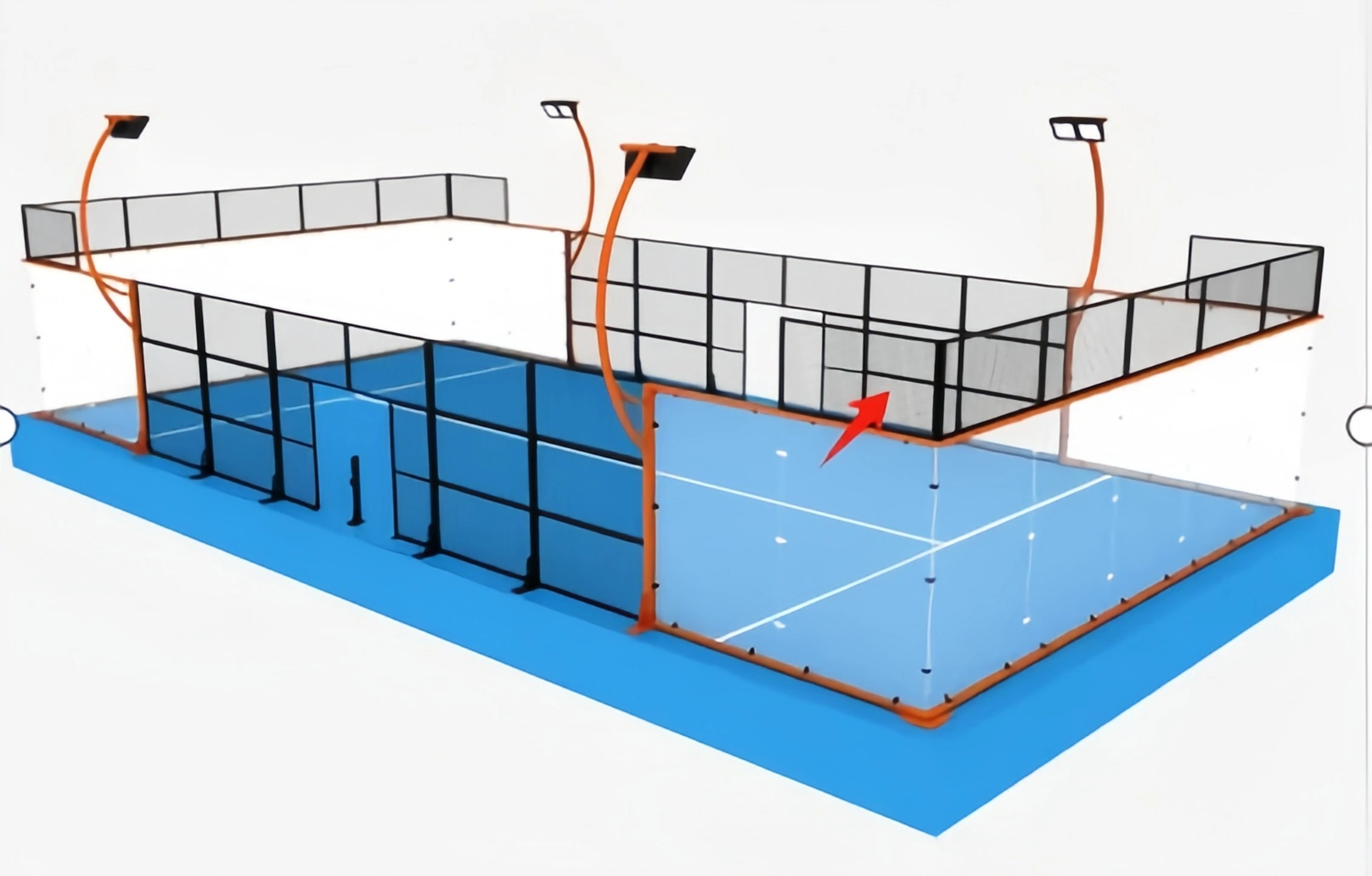

full panoramic padel court-2


Net Post




Material: Hot-dip galvanized steel+Epoxy zinc-rich primer + electrostatic spraying

Steel pipe size: 50mm*100mm*3mm


Upper Net Frame




Material: Hot-dip galvanized steel +Epoxy zinc-rich primer + electrostatic spraying,

Mesh frame size: 1000*2000mm,

Frame tube: 50*30*2.2mm,

Mesh: 50*50*4mm

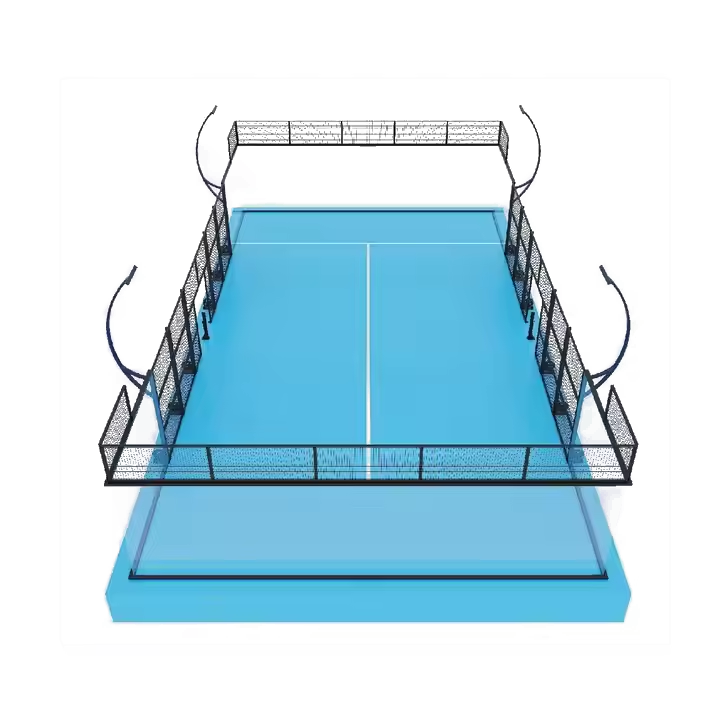

Full Panoramic Padel Court.png

full panoramic padel court-3

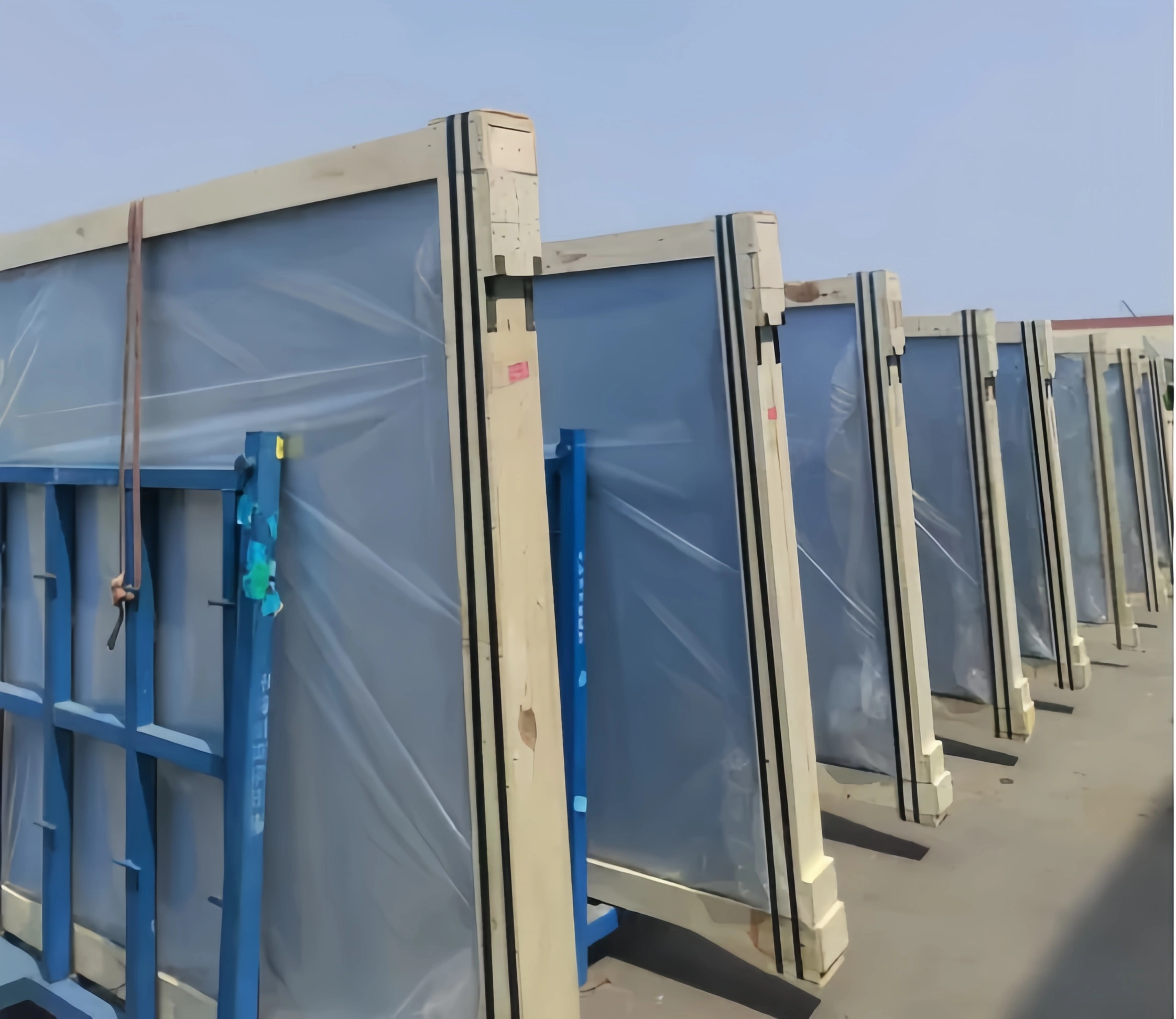

Tempered Glass Certified by EN12150




* 1. Color: transparent

* 2. Size: 1995mm*2995mm(18pcs)

* 3. Thickness: 12mm

* 4. Special explosion -proof tempered glass.

Could customized your logo on it.

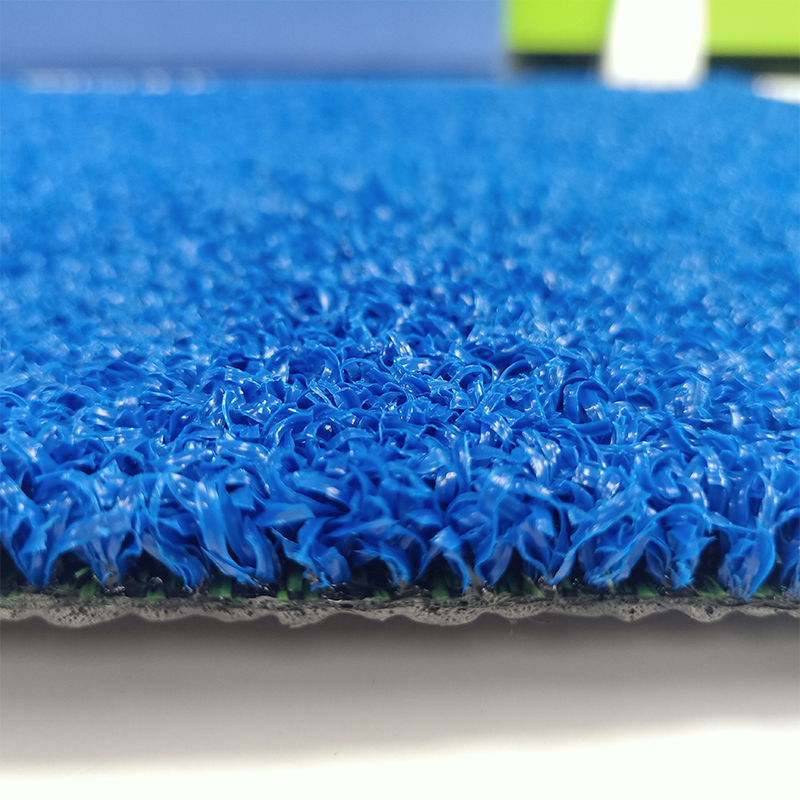

Artificial Grass




Color: blue or customize

Thickness: 12mm

Height: 12mm(±1mm)

Density: 63000

Dtex: 9500D

Gauge: 3/16"

Backing: PP+Mesh Reinforce+SBR Latex or Double PP+PU

Curved Color: Blue+White Line

Green turf.jpg



Lighting




1. 8 pieces of 200W LED light

2. Illuminance: 300Lux

3. Height: 6m

4. Color temperature: 6500k;

5. Input voltage: 180v-220v;

6. Frequency: 50HZ.

Flood LED lighting system Play anytime


Painting




The surface of the metal structure is treated with electrostatic powder coating technology. After the powder is evenly applied to the substrate, it undergoes a polymerization and curing reaction in a high-temperature oven at 180ºC to 200ºC. The coating formed by this process offers excellent comprehensive protective performance, effectively resisting corrosion, ultraviolet radiation, and mechanical impact.

Solutions


Full Panorama Padel Court: The Apex of Sporting Architecture

1. From Activity to Experience: Redefining Premium Amenities
In the competitive landscape of leisure and premium amenities, true distinction arises not from merely offering an activity, but from curating an unforgettable experience. The Full Panorama Padel Court embodies this principle, transcending the conventional definition of a sports facility to emerge as a breathtaking architectural landmark and a dynamic social hub. It is designed for visionary developers, luxury resorts, elite sports clubs, and high-end residential communities where excellence in design, commitment to an active lifestyle, and the creation of iconic spaces converge. This court is more than a place to play; it is a statement of intent, a centerpiece that defines its environment and elevates the very perception of padel.

2. The Design Philosophy: Transparency that Dissolves Boundaries
The defining and revolutionary feature is its full-perimeter enclosure crafted from floor-to-ceiling, high-clarity tempered safety glass. This is not a simple design choice; it is a philosophical one. The transparent walls dissolve the physical and visual barriers traditionally associated with court sports, creating a seamless dialogue between the intense action inside and the wider world outside. From an exterior perspective, the court becomes a living, breathing sculpture. By day, it reflects the sky and surroundings, a sleek geometric form that integrates with modern architecture or natural landscapes. By night, internally illuminated, it transforms into a radiant lantern, a beacon of vitality and sophistication that draws people in. This architectural charisma provides immense marketing value, generating organic social media content and positioning the venue as a contemporary and desirable destination.

3. The Immersive Player Experience
For the player, the experience is transformative. Stepping onto the court offers a sensation of playing en plein air, with unparalleled spatial awareness and a profound sense of freedom, yet with all the controlled consistency and safety of an enclosed arena. The panoramic view eliminates the claustrophobic feel of solid walls, allowing athletes to intuitively gauge their position and shot placement within the broader context. Natural light floods the space, enhancing visibility and creating optimal playing conditions that reduce eye strain and fatigue. The glass also serves as a perfect environmental buffer, eliminating unpredictable wind interference—a common nuisance in open padel setups—which ensures the purest form of the game, where skill, not elements, determines the outcome. This environment is equally suited for high-stakes competitive tournaments requiring absolute fairness and for social play where the joy of the game is heightened by the stunning backdrop.

4. Precision Engineering & Advanced Material Science
The engineering and material science behind this aesthetic marvel are what guarantee its longevity, safety, and performance. We utilize only low-iron “crystal clear” glass, which removes the greenish tint of standard glass, offering true optical clarity. This glass is thermally toughened for increased strength and, critically, is often laminated. Lamination involves bonding two panes with a resilient interlayer of polyvinyl butyral (PVB). This ensures that if impact occurs, the glass holds together, preventing shattering and containing any fragments—a non-negotiable safety standard for player protection. The structural framework is a masterpiece of minimalist engineering, employing high-tensile, powder-coated aluminum alloys. These profiles are designed to be incredibly strong yet slim, maximizing transparency while supporting significant loads. The entire system is engineered to accommodate thermal expansion, seismic activity (where relevant), and wind pressures specific to the installation site, with calculations certified by structural engineers.

5. Meticulous Attention to Detail
Beyond the core structure, every detail is meticulously considered. The jointing systems between glass panels are precision-machined for a flush, seamless appearance, enhancing the visual purity and preventing dirt accumulation. Integrated, low-profile ventilation systems are incorporated into the framework to ensure adequate airflow and prevent condensation on the glass interior, maintaining clear views at all times. The glass is treated with easy-clean, hydrophobic coatings that cause water to bead and roll off, taking dust with it, which drastically reduces maintenance demands. For evening and night play, a custom LED lighting solution is integrated into the structure. These lights are positioned to provide uniform, shadow-free illumination across the entire court surface, meeting professional broadcast standards without causing glare for players or light pollution for the surroundings.

6. A Multifaceted Strategic Investment
The decision to invest in a Full Panorama Padel Court is a multifaceted strategic move. From a Real Estate Perspective, it significantly enhances property value and appeal, acting as a coveted amenity that attracts affluent buyers or tenants. From a Club or Resort Operations standpoint, it drives membership premiums, increases court rental rates, and creates a prime venue for hosting televised events or exclusive tournaments, generating significant ancillary revenue. From a Community and Social Angle, it fosters unparalleled engagement. It is as much a venue for spectators as for players, encouraging social gathering, spectating, and a shared sense of place. It makes the sport more accessible and appealing to a wider audience, demystifying it through visibility.

7. Defining the Future of Recreational Architecture
Ultimately, this court represents the future of recreational architecture. It answers a growing demand for experiences that are authentic, photogenic, and socially connected. It is for those who understand that the highest value is created not just by providing a function, but by inspiring an emotion. The Full Panorama Padel Court is where sport meets spectacle, performance meets poetry, and a game becomes a lasting memory. It is the definitive choice for creating a legacy asset that will be admired, utilized, and cherished for decades to come.

FAQ


Q: What are your company's core advantages in the manufacturing of padel court equipment?
A: We are a one-stop solution provider specializing in the R&D and manufacturing of padel court equipment, with over 10 years of industry experience. We utilize FIP-certified high-strength materials (such as corrosion-resistant steel structures, professional-grade glass, and UV-resistant artificial turf) and possess independently developed full-scale production lines and patented technologies. This ensures full-process control from foundations, fencing, and lighting to supporting facilities, guaranteeing high standards and consistency in project delivery.

Q: How do you ensure the durability and safety of your products?
A: All our core materials are certified by international authorities (such as CE and EN 12150) and undergo extreme environmental simulation testing. For example:
1). The steel structure is treated with hot-dip galvanizing for corrosion resistance, with wind pressure resistance rated at Level 10 or above.
2). The glass enclosure uses 12mm or thicker tempered laminated glass, with impact resistance exceeding national standards by 200%.
3). The court system comes with a 10-year warranty on the main structure and is maintenance-free, completely eliminating customer concerns.

Q: Why should customers choose you over other suppliers?
A: We are not just equipment manufacturers but also partners in the sports facility ecosystem:
1). One-stop delivery: Comprehensive services from design, production, installation, and maintenance, catering to all scenarios from amateur to professional event needs.
2). Proven track record: We have delivered over 6,000 courts across 50 countries and regions (e.g., Country Padel South Africa, Padel One Netherlands).
3).Flexible customization: We support personalized customization of court dimensions, brand logos, and color systems to align with commercial and branding requirements.

Q: What after-sales services and warranty policies do you offer?
A: We promise that "delivery is just the beginning of our service":
1). Comprehensive warranty: Main structure warranty for 10 years, fencing system for 5 years, lighting, and turf for 5 years (terms are adjustable).
2). 24/7 response mechanism: Lifetime technical support is provided, with priority given to remote diagnosis for urgent issues and dispatch of local engineers when necessary.

Q: Can you assist with compliance and planning issues in court construction?
A: Yes, we offer free preliminary technical consultations, including:
1).Compliance analysis (providing design solutions based on national building codes and sports standards).
2).Space utilization optimization (for special environments such as rooftops, basements, and outdoor areas).
3).Recommendations for integrated supporting equipment (e.g., drainage systems, lighting solutions, and smart accessories).

Q: How do you ensure the delivery efficiency and installation quality for overseas projects?
A: We have a mature international project execution system:
1).Modular pre-assembly: 80% of components are pre-assembled in the factory, reducing on-site construction time and costs.
2).Global logistics partnerships: Long-term collaboration with renowned shipping and freight companies, providing door-to-door logistics tracking.
